Pet Pad Machine

Pet Pad Machine

Description:

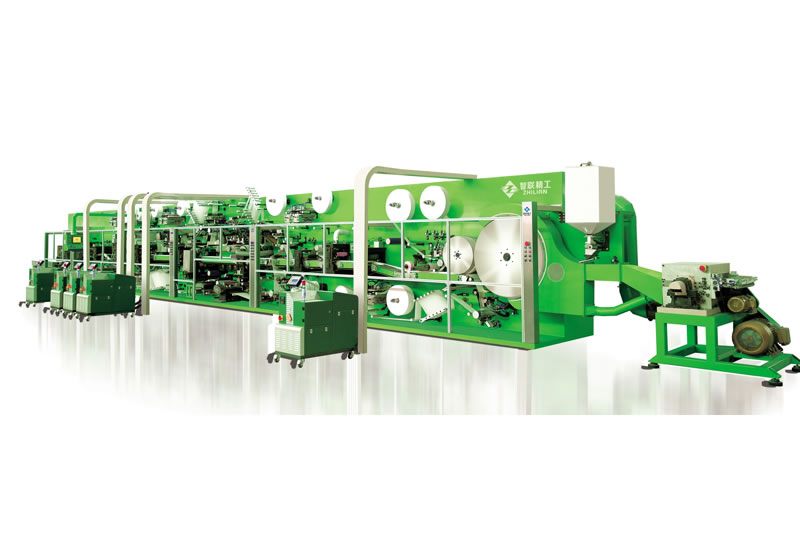

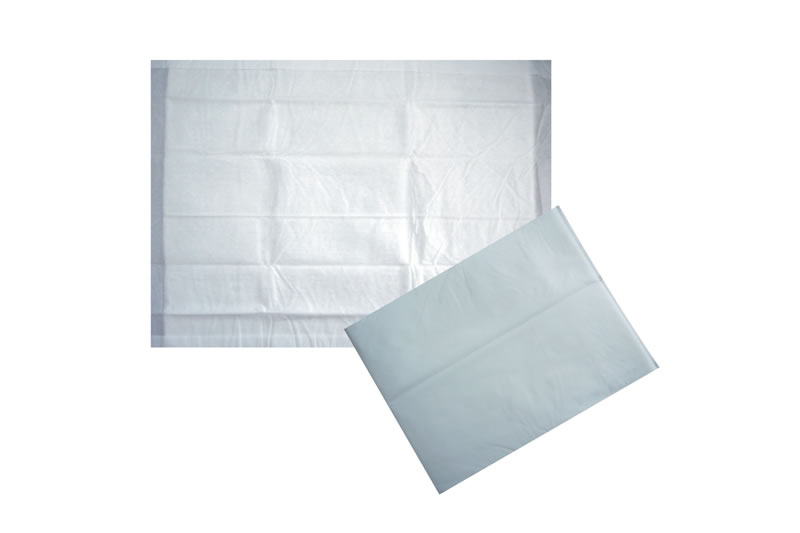

Pet pad machine is a professional line for producing disposable pad products for pets. This machine uses the inverter or servo drive and PLC control. It owns an automatic slicing, deviation rectification device and a high degree of automation. There is a touch screen for operation. The reasonable design of pet pad production line conforms to the need of actual operation. Frame panel uses large gantry milling for processing and components processing uses CNC. Parts' high machining accuracy can ensure that equipment works stably with a high speed. According to the specific structure of products, we generally deliver products within 6 months. For payment, T/T or L/C is available .

Advantages:
1. Pet pad machine has a more reasonable design which is well received by clients.
2. The components own a high processing precision.
3. The equipment can be operated stably for a long time.
4. The pet pad production line has a high yield and high production efficiency.
5.The machine wallboard is processed by the large gantry milling machine.

  • Main Configurations of Pet Pad Machine:

    • 1.Inverter drive, PLC control with touch screen
      2.Raw materials tension control and auto splicing
      3.Quality control system with reject for defective products
      4.Pulp unwinding stand
      5.Cell mill with single in-feeding pulp
      6.Single drums forming for constant core formation
      7.SAP applicator
      8.Tissue wrapping device
      9.Core compacting unit
      10.Tail hole of the core cutting unit
      11.Core cutting unit
      12.ADL splitting device
      13.Elastic ribbon unwinding unit
      14.Back sheet & NW lamination device
      15.Elastic waistband applicator
      16.Frontal tape applicator
      17.Side tape applicator
      18.Leg cuff applicator
      19.Semicircle hole cutting unit
      20.Anatomic (R) cutting unit
      21.Longitudinal folding device
      22.Final cross cutting unit
      23.Tri-folding device
      24.Reject gate
      25.Bag type dust collection system
      26.Safety door

  • Main Technical Parameters of Pet Pad Machine:

    • Production Speed: 350pcs/min
      Max. Production Speed: 450pcs/min
      Required Power Supply: 195 Kw (glue applicator and air compressor excluded)
      Power: 380V, 50 Hz, 3 Phases
      Compressed Air:   0.6-0.8 M pa, 2.5M³/min
      Total Weight:  42 tons
      Dimensions: (m) L × W × H: 26× 7.5× 3.5 (for reference)

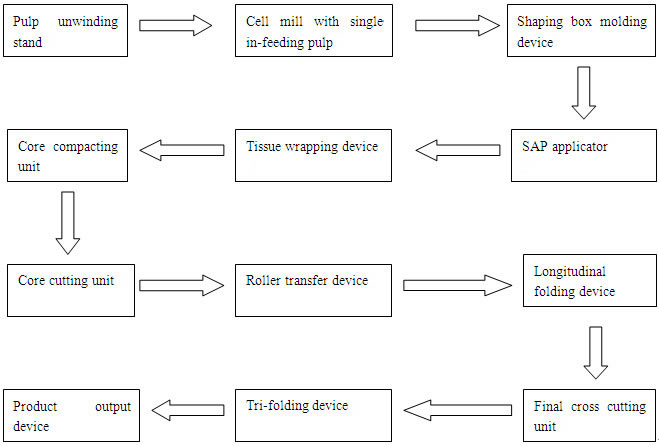

  • Flow Chart of Pet Pad Production Line:

ZZ Machinery (Shanghai) Co., Ltd. is a professional manufacturer and supplier of pet pad production line in China. In addition to this, we also provide maternity napkin production line, hemostasia pad production line, breast pad machine, pet diaper machine, packing machine, etc. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. We follow strictly the standards for machinery industry formulated by the state. Our clients are from all over the world, including Europe, the Middle East, Africa and Southeast Asia.
