Breast Pad Machine

Basic Information:

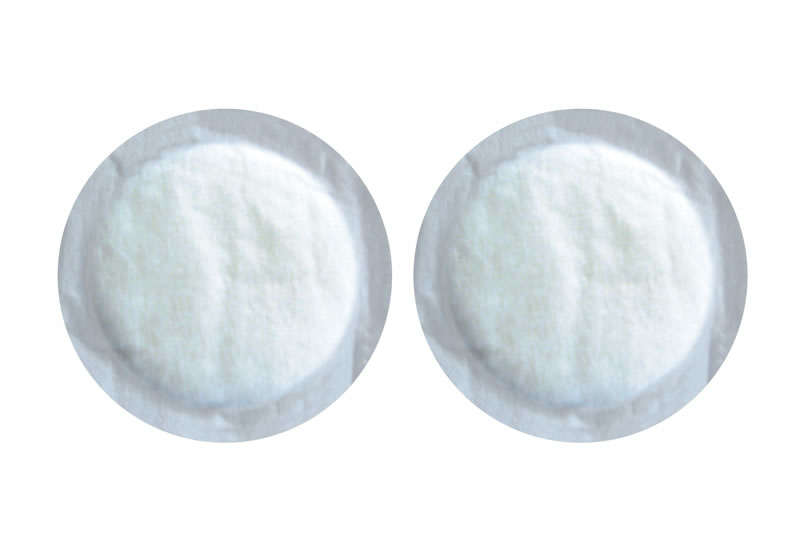

Breast pad production line produces disposable breast pads used by new mothers during their lactation period. It be designed and manufactured under the CE standard. Our company is a professional breast pad machine producer. We insist on studying the requirements of the market, developing and applying new technology and workmanship. We also strengthen quality management continuously to provide the most energy saving and high efficiency equipments for customers. The breast pad production line is designed reasonably conformed to the practical need. We have a high degree of automation, so it can work in a stable and high-efficiency way. According to different products' structure, we usually deliver within 4 to 6 months. We make use of plywood pallets with plastic film for packaging and container for delivery to ensure its safety. For payment, you can choose T/T or L/C. The surging economic globalization and the increasingly expanding exchanges have both contribute to a broader prospect for our company's future.

Equipment Functions:
1. The finished breast pads made in the breast pad production line were packed in small package.
2. Cell mill with single in feeding pulp can crush the whole processing.
3. Main motor inverter control and mechanical transmission with differential gear boxes, universal shafts &timing belt.
4. Full automatic unwinding modules are allowed in line in order to drive and to control the raw material tension.Web guiders be equipped for high precision.
5. The machine wallboard is processed by the large gantry milling machine.

Main Configurations of Breast Pad Production Line:
- 1. Inverter drive, PLC control with touch screen
  2. Pulp unwinding stand
  3. Cell mill with single in-feeding pulp
  4. Constant drum forming unit
  5. SAP applicator
  6. Upper and bottom tissue unwinding devices
  7. Core compacting unit
  8. Core forming cutting unit
  9. Top NW and laminated back sheet unwinding devices
  10. Back release paper unwinding and splitting device
  11. Final cutting unit
  12. Product output device
  13. Reject gate
  14. Product output platform
  15. Bag type dust collection system
  16. Product ordering output device

Main Technical Parameters of Breast Pad Machine:

Production Speed	300pcs/min
Required Power Supply	46Kw (glue applicator and air compressor excluded)
Power	380V, 50Hz, 3 Phases
Compressed Air	0.6-0.8Mpa, 1.2 m³/min
Total Weight	9 T
Dimension(for reference)	8.5m×5.5m×2.5m (L×W×H)

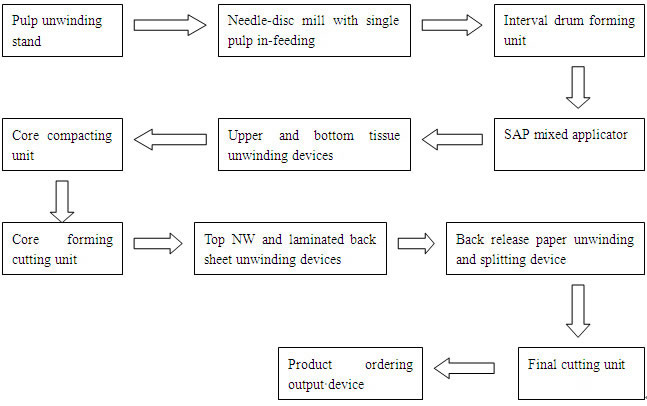

Flow Chart of Production Line:

ZZ Machinery (Shanghai) Co., Ltd. is a professional manufacturer and supplier of breast pad machines in China. In addition to these products, we also provide maternity napkin production line, hemostasia pad production line, pet diaper machine, pet pad machine and packing machine, etc. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. We follow strictly the standards for machinery industry formulated by the state. Our clients are from all over the world, including Europe, the Middle East, Africa and Southeast Asia.
