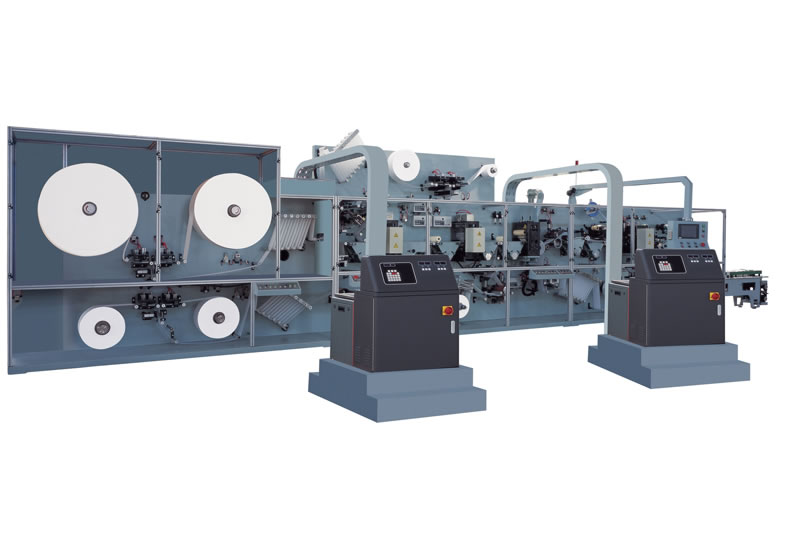

Grouping Device Panty Liner Machine

Grouping Device Panty Liner Machine

Quick Details:

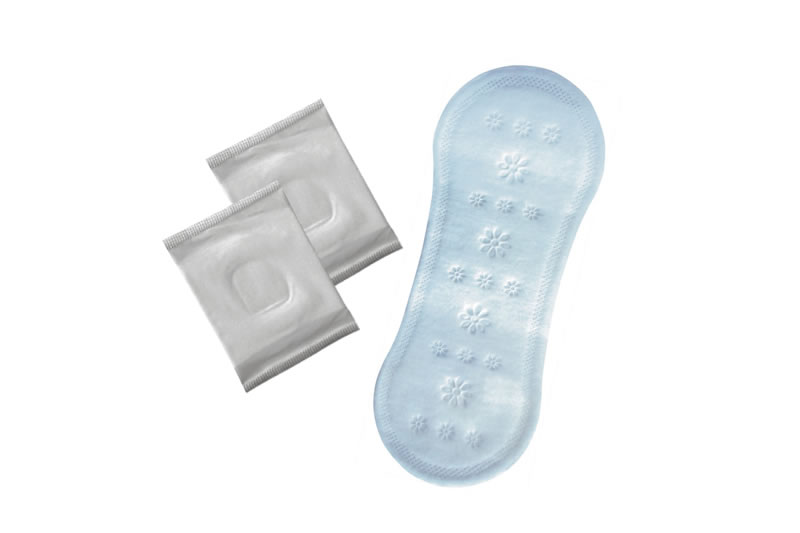

Grouping device refers to a kind of packing form. When we finish producing products, grouping device panty liner machine is a kind of ultra-thin panty liner machine, which can do group wrapping according to the given number. Our company can produce panty liner machinery with grouping device. Fast-easy ultra-thin panty liner machinery with grouping device (cross direction) produces panty liner products used before or after women's menstruation or for daily use.

Main Function Features:
1. Grouping device panty liner machine has frequency motor drive with PLC control and touch screen.
2. It owns teeth-like crusher.
3. We have frequency unwinding, passive-tension control and splicing for raw materials.
4. There are auto reject for wasted diaper, detect and alarm for material exhausted.
5. During running, phase adjusting doesn't stop.
6. The product counting and output are in line.
7. The machine wallboard is processed by the large gantry milling machine.

  • Main Configurations of Grouping Device Panty Liner Machine:

    • 1. Inverter drive, PLC control with touch screen
      2. Pulp unwinding stand
      3. Cell mill with single in-feeding pulp
      4. Single drums forming for constant core formation
      5. SAP applicator
      6. Tension control raw material unwinding unit with auto splicing
      7. Grooving unit
      8. Contour sealing unit
      9. Back release paper unwinding device
      10. Final cutting unit
      11. Product 90°revolving device
      12. Interval ordering device
      13. Product folding device
      14. Adhesive tape unwinding and applying device
      15. Thermo-sealing and cutting unit
      16. Quality control system
      17. Reject gate
      18. Bag type dust collection system
      19. Product grouping device

  • Main Technical Parameters of Grouping Device Panty Liner Machine:

    • Production Speed: 500pcs/min
      Designed Speed: 800pcs/min
      Required Power Supply: 56Kw (glue applicator and air compressor excluded)
      Power: 380V, 50Hz, 3 Phases
      Compressed Air: 0.6-0.8Mpa, 1.2m³/min
      Total Weight: 23 T
      Dimensions: (M) L×W×H: 16.5m×5.5m×2.5m (for reference)

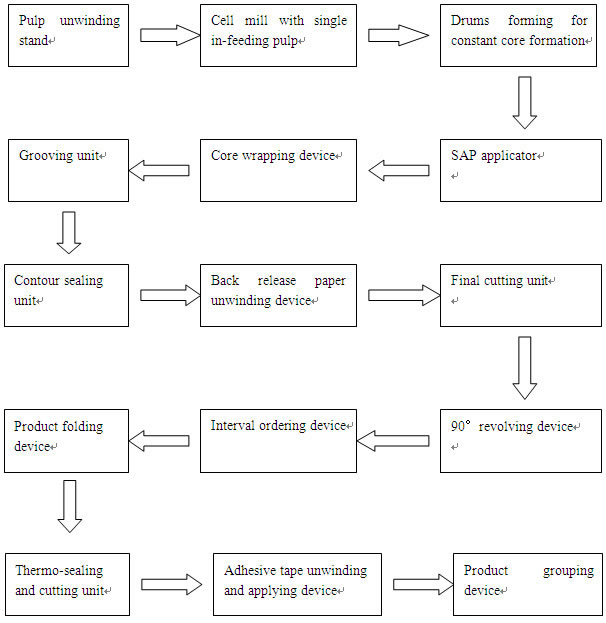

  • Flow Chart of Production Line

ZZ Machinery (Shanghai) Co., Ltd. is a professional manufacturer and supplier of panty liner machinery with grouping device in China. In addition to this product, we also provide sanitary napkin machine, baby diaper machinery, adult diaper machine, under pad machinery, maternity napkin production line, etc. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. We follow strictly the standards for machinery industry formulated by the state. Our sales cover a wide range all over the world.
