Easy-Open Packing Sanitary Napkin Machine

Easy-Open Packing Sanitary Napkin Machine

Description:

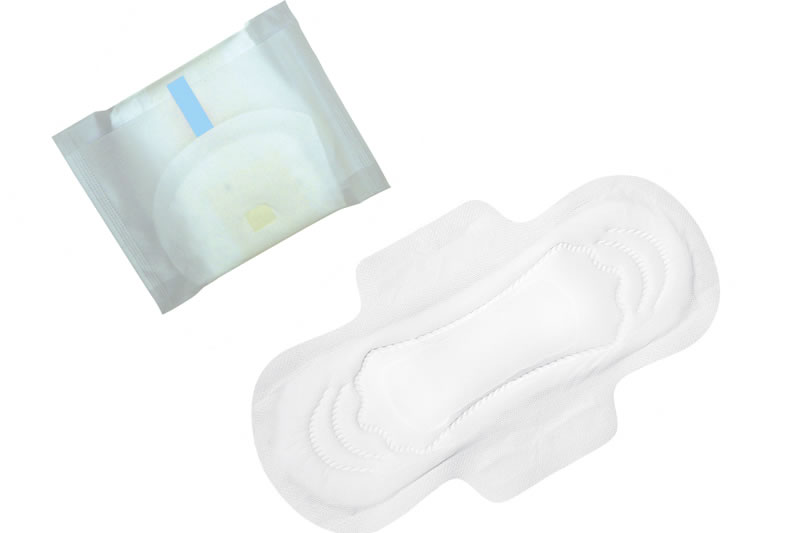

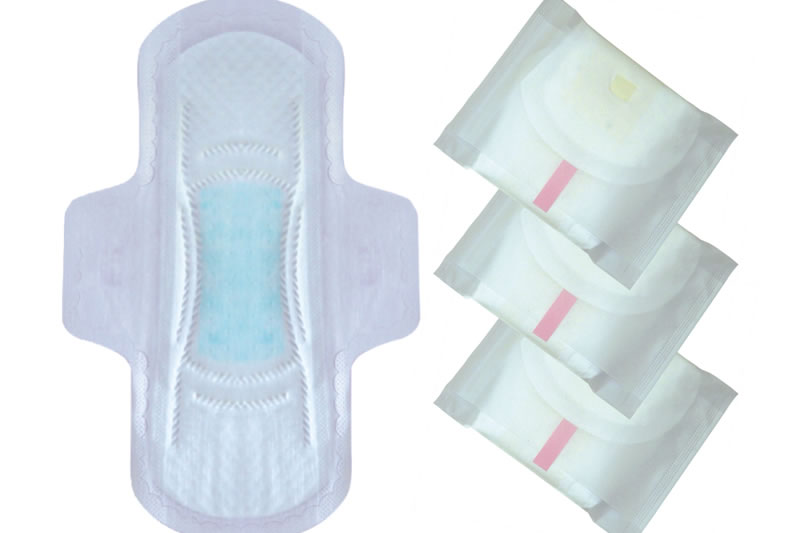

Generally, products made from production line need packing. There are different packing ways of disposable sanitary napkins, such as easy-wrap (easy-open packing or quick packaging), individual packing and straight packing. The sanitary napkin has easy-open sticky tapes sealed for hygiene . Easy-open packing sanitary napkin machine owns different driving modes, such as full-servo, semi-servo and ordinary inverter controlled drive. Both pulp core and ultra–thin sanitary napkins can be produced by this equipment. Meantime, the winged and wingless can also be made in the production line. Easy-open packing wing sanitary napkin machine is the most typical one. The production line mainly manufactures ultra-thin sanitary napkin products used during women's menstruation.

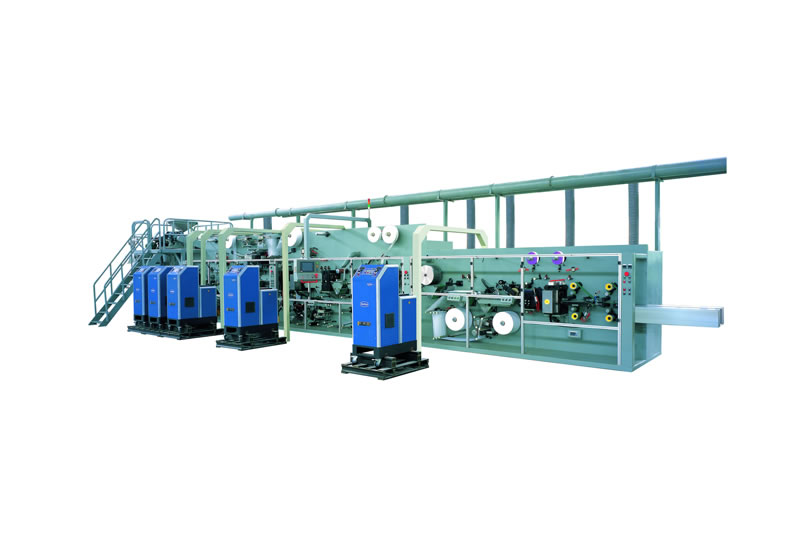

Typical Line: Easy-Open Packing Wing Sanitary Napkin Machine
Properties:
a. The machine consumes low energy.
b. Raw material unwinding is controlled by auto-controlling system.
c. There is PLC automatic control system, which is useful for automatic calculation and checking products data.
d. Easy-open packing sanitary napkin machine can reject defects automatically.
e. The machine wallboard is processed by the large gantry milling machine.
f. The components have high processing precision, which guarantees the equipment can work stably in a long term.
g. It is quite easy for operation, maintenance and further upgrade.
h. The machine wallboard is processed by the large gantry milling machine.

  • Main Configurations of Easy-Open Packing Wing Sanitary Napkin Machine:

    • 1. Inverter drive, PLC control with touch screen
      2. Pulp unwinding stand
      3. Cell mill with single in-feeding pulp
      4. Drums forming for constant core formation
      5. SAP applicator
      6. Tension control raw material unwinding unit with auto splicing
      7. Core compacting device
      8. Elastic ribbon unwinding and applying unit
      9. Cuff NW vertical cutting device
      10. Cuff embossing unit
      11. ADL splitting and dotting unit
      12. Grooving unit
      13. Contour sealing unit
      14. Back release paper unwinding and splitting device
      15. Final cutting unit
      16. Wing folding device
      17. Wing release paper unwinding and splitting device
      18. 90°revolving device
      19. Product folding device
      20. Adhesive tape unwinding and applying device
      21. Thermo-sealing and cutting unit
      22. Reject gate
      23. Bag type dust collection system
      24. Safety door

  • Main Technical Parameters of this Easy-Open Packing Sanitary Napkin Machine:

    • Production Speed: 400pcs/min
      Max. Production Speed: 500pcs/min
      Required Power Supply: 130Kw (glue applicator and air compressor excluded)
      Power:  380V, 50Hz, 3 Phases
      Compressed Air: 0.6-0.8Mpa, 2.0 m³/min
      Total Weight: 28 T
      Dimensions: (M) L×W×H: 19m×6.5m×3.5m (for reference)

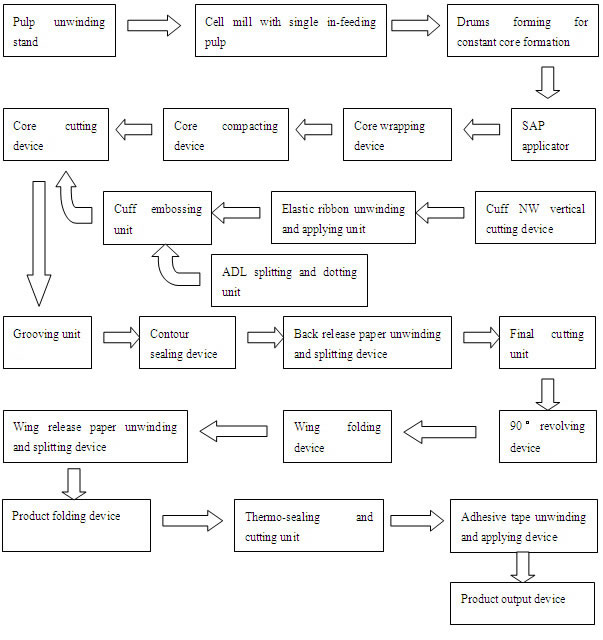

  • Flow Chart of Easy-Open Packing Wing Sanitary Napkin Production Line:

ZZ Machinery (Shanghai) Co., Ltd. is a professional manufacturer and supplier of easy-open packing sanitary napkin machines in China. In addition to these products, we also provide maternity napkin machines, hemostasia pad production line, breast pad machine, pet diaper machine, pet pad machine and packing machine, etc. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. We follow strictly the standards for machinery industry formulated by the state. Our sales cover a wide range all over the world.
